Description

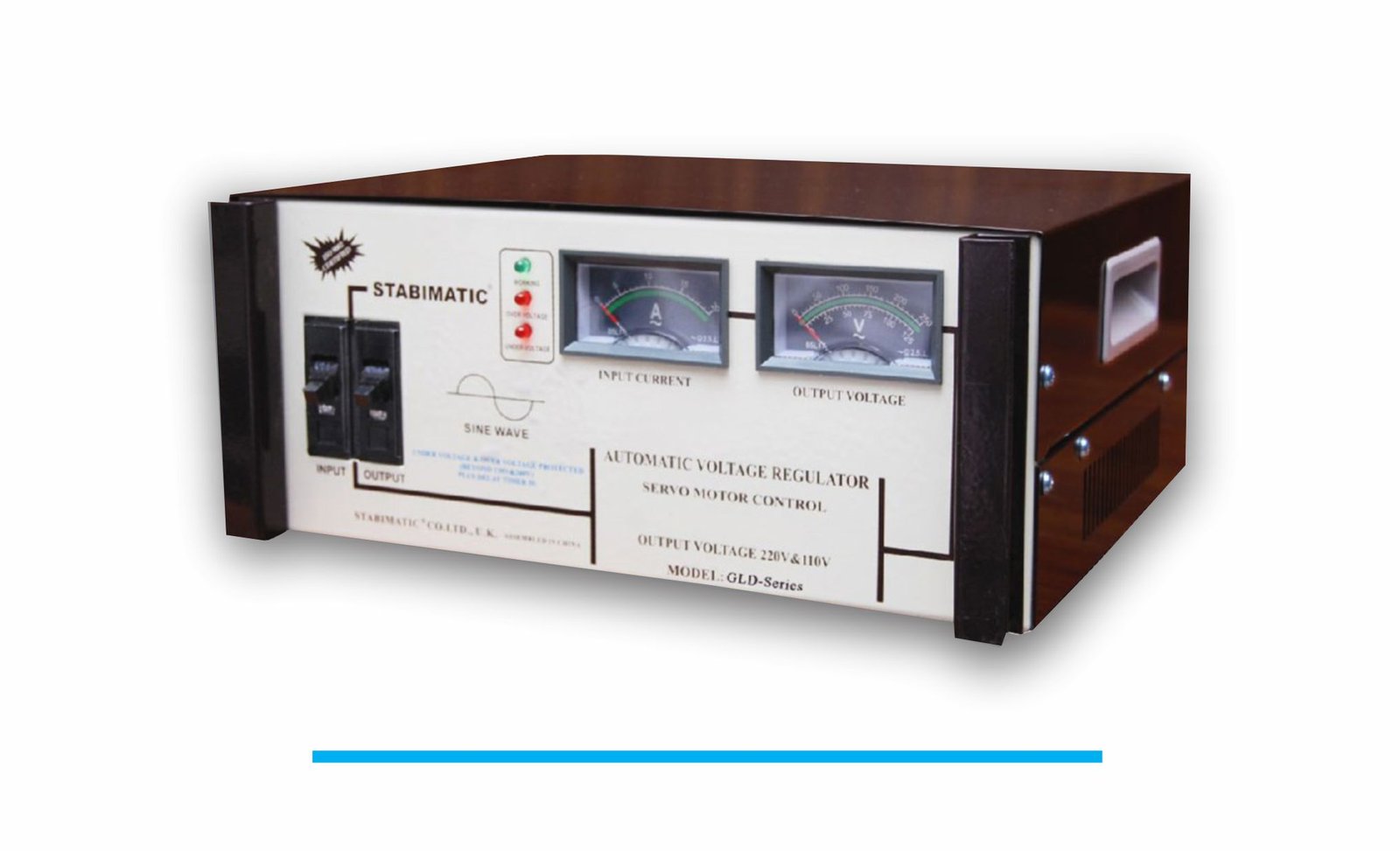

GLD Gold Series Single Phase Servo Type
(2KVA ~ 10KVA
STABIMATIC © quality speaks for itself. Precision-crafted, accurate and highly efficient
These units offer a host of peerless qualities including rapid correction, zero-waveform
Distortion, a wide range of input voltages and a compact and lightweight construction.
STABIMATIC © units are ideal for all electrical appliance, constant input voltage applications.
Do not settle for less then the best.
| Key Features |
|
|
| • Servo Motor control
• Short Circuit & Overload Protected
• Input 130~260V
• Delay Timer (5 Sec)
• Under & Over Voltage Protected
• Fast Response
• Earthling Protected
|
|
• Output 110/220V ± 2%
• Terminals for 3KVA~10KVA
• Color LEDs Indicate Normal, Under & Over Voltage
• High Efficiency
• Pure Sine Wave
• Response 0.5 sec/10% deviation
|
|
Note: It is possible to obtain 3 phase 380V by connecting 3 units in Star connection. In this case it is necessary to effect neutral connection on input side.
|
Model
|
Input Voltage
|
Output Voltage
|
Amps.
|
|
GLD 2000 VA
|
130V~260V
|
110V ± 0 to 2 %
220V ± 0 to 2 %
|
18.0 A
|
|
9.0 A
|
|
GLD 3000 VA
|
110V ± 0 to 2 %
220V ± 0 to 2 %
|
27.2 A
|
|
13.6 A
|
|
GLD 5000 VA
|
110V ± 0 to 2 %
220V ± 0 to 2 %
|
45.5 A
|
|
22.7 A
|
|
GLD 8000 VA
|
110V ± 0 to 2 %
220V ± 0 to 2 %
|
72.7 A
|
|
36.3 A
|
|
GLD 10000 VA
|
110V ± 0 to 2 %
220V ± 0 to 2 %
|
90.9 A
|
|
45.4 A
|
APPLICATIONS
Medical equipment
X – ray equipment
Laboratory Instruments
Test equipment
Industrial robots
Auto process control equipment
Light equipment
Hi-Fi equipment
Communication System
Broadcasting equipment
Alarm and security system
Numeric Control machine tools
Computers
Calculating machines
Photographic processing equipment
Satellite control system
Computerized embroidery machine |
|
